防火等級 : UL 94-V2
耐溫度: -40 ℃ ~85 ℃
顏色: 黑色/本色/也可接受訂製特殊顏色
包裝 : 100條/包
符合 UL & ROHS 認證

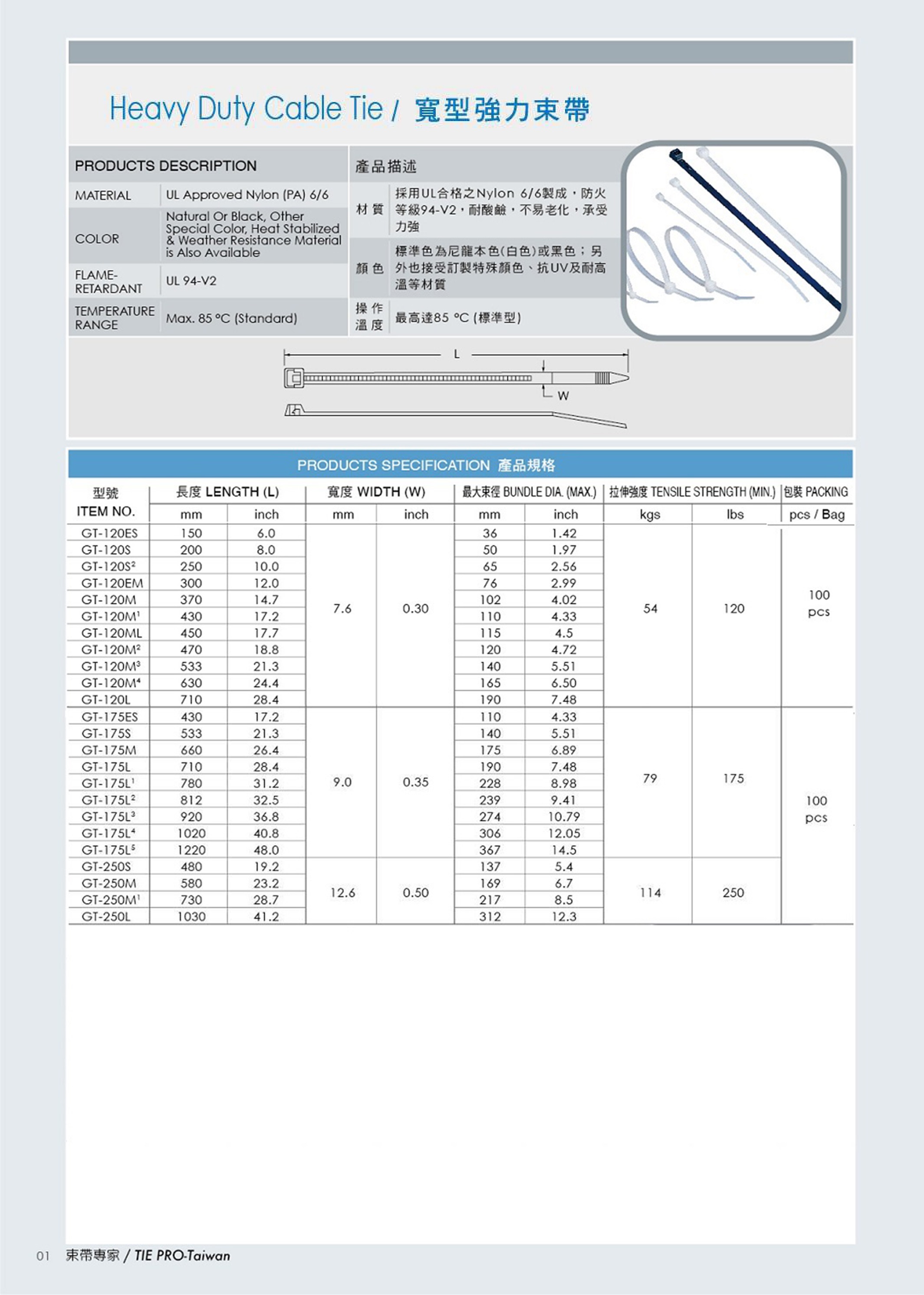

| 型 號 | 長 度 (L) | 寬 度 (W) | 束 徑 (max.) | 拉伸強度 (min.) | ||||
| mm | inch | mm | inch | mm | inch | kgs | lbs | |
| GT-120ES | 150 | 6.0 | 7.6 | 0.30 | 36 | 1.4 | 54 | 120 |
| GT-120S | 200 | 8.0 | 50 | 2.0 | ||||
| GT-120S2 | 250 | 10.0 | 65 | 2.6 | ||||
| GT-120EM | 300 | 12.0 | 76 | 3.0 | ||||
| GT-120M | 370 | 14.7 | 102 | 4.0 | ||||
| GT-120M1 | 430 | 17.2 | 110 | 4.3 | ||||
| GT-120ML | 450 | 17.7 | 115 | 4.5 | ||||
| GT-120M2 | 470 | 18.8 | 120 | 4.7 | ||||
| GT-120M3 | 533 | 21.3 | 140 | 5.5 | ||||
| GT-120M4 | 630 | 24.4 | 165 | 6.5 | ||||
| GT-120L | 710 | 28.4 | 190 | 7.5 | ||||
| GT-175ES | 430 | 17.2 | 9.0 | 0.35 | 110 | 4.3 | 79 | 175 |
| GT-175S | 533 | 21.3 | 140 | 5.5 | ||||
| GT-175M | 660 | 26.4 | 175 | 6.9 | ||||
| GT-175L | 710 | 28.4 | 190 | 7.5 | ||||
| GT-175L1 | 780 | 31.2 | 228 | 9.0 | ||||
| GT-175L2 | 812 | 32.5 | 239 | 9.4 | ||||
| GT-175L3 | 920 | 36.8 | 274 | 10.8 | ||||
| GT-175L4 | 1020 | 40.8 | 306 | 12.1 | ||||
| GT-175L5 | 1220 | 48.0 | 367 | 14.5 | ||||
| GT-250S | 480 | 19.2 | 12.6 | 0.50 | 137 | 5.4 | 114 | 250 |
| GT-250M | 580 | 23.2 | 169 | 6.7 | ||||
| GT-250M1 | 730 | 28.7 | 217 | 8.5 | ||||
| GT-250L | 1030 | 41.2 | 312 | 12.3 | ||||
